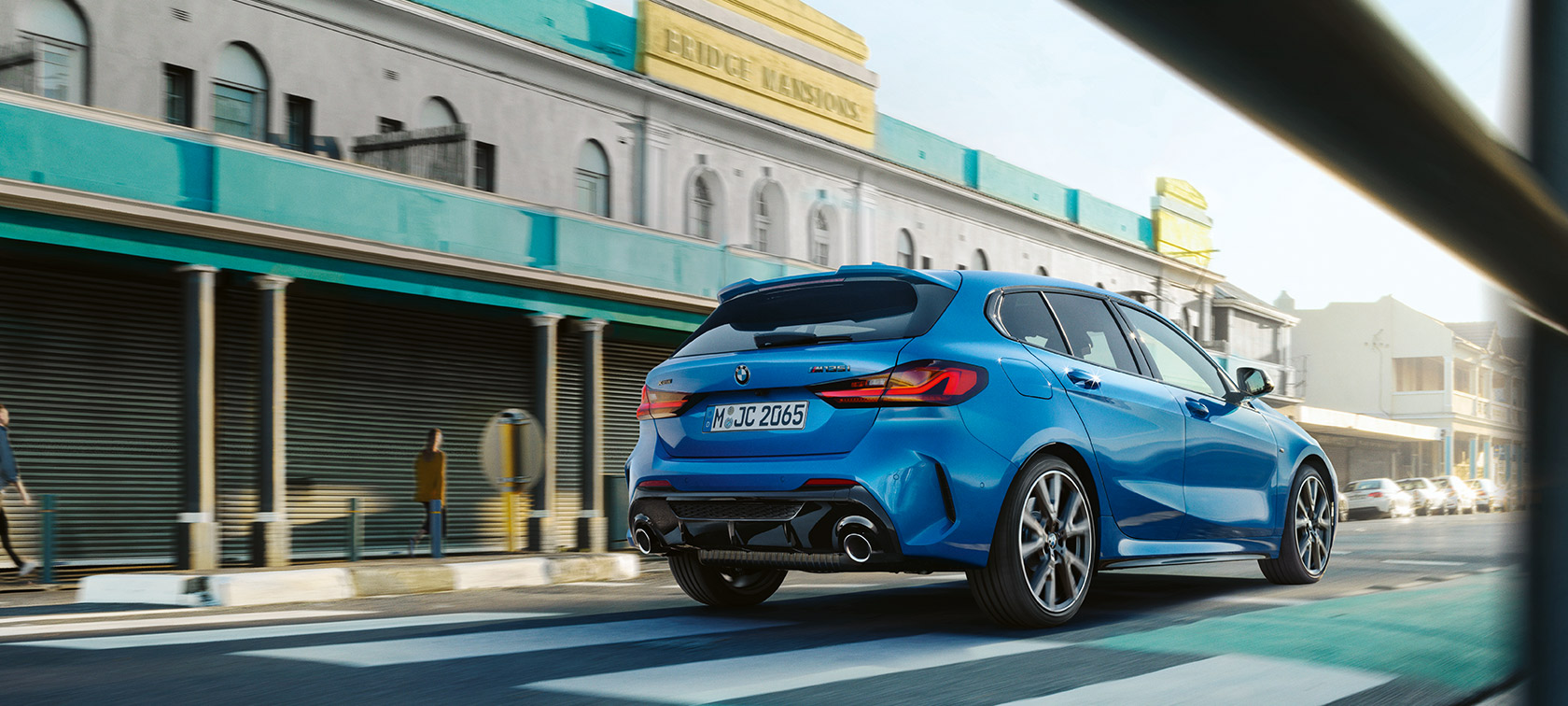

BMW 1 Series 128ti F40, three-quarter rear view driving

THE 1

BMW 1 SERIES: ENGINES & TECHNICAL DATA

Discover the powerful petrol and diesel engines as well as the dimensions and other technical data of the BMW 1 Series.

Read more
THE 1BMW 1 SERIES: ENGINES & TECHNICAL DATA

BMW 1 SERIES: TECHNICAL DATA.

Select model

Weight

Unladen weight EU in kg 1,395 [1,415]
Max. permissible weight in kg 1,850 [1,870]
Permitted load in kg 530 [530]
Permitted axle load front/rear in kg 980/940 [1,005/940]
Luggage capacity min. (seats up or roof down) in l 380 [380]
Luggage capacity max. (seats down or roof up) in l 1,200 [1,200]
Trailer load 8% (braked) in kg 1,100 [1,100]
Trailer load 12% (braked) in kg 1,100 [1,100]
Trailer load (unbraked) in kg 695 [705]

Engine

Cylinders/valves 3/4
Capacity in ccm 1,499
Stroke/bore in mm 94.6/82.0
Engine power* in kW (hp) at 1/min 80 (109)/4,300-6,500
Engine torque (Nm) at 1/min 190/1,380-3,800
Compression ratio : 1 11.0

Performance

Top speed in km/h 199 [199]
Acceleration 0–100 km/h in s 10.6 [10.6]

Fuel consumption

Urban in l/100 km 7.9 [7.2]
Extra–urban in l/100 km 5.3 [5.5]
Combined in l/100 km 6.3 [6.1]
CO2 combined emissions in g/km 144 [141]
Tank capacity, approx. in l 42

Wheels

Tyre dimensions front 205/55 R16 91 W
Tyre dimensions rear 205/55 R16 91 W
Wheel dimensions and material front 7 J x 16 inches, light-alloy
Wheel dimensions and material rear 7 J x 16 inches, light-alloy

Weight

Unladen weight EU in kg 1,365 [1,395]
Max. permissible weight in kg 1,845 [1,870]
Permitted load in kg 555 [550]
Permitted axle load front/rear in kg 980/940 [1,005/940]
Luggage capacity min. (seats up or roof down) in l 380 [380]
Luggage capacity max. (seats down or roof up) in l 1,200 [1,200]
Trailer load 8% (braked) in kg 1,300 [1,300]
Trailer load 12% (braked) in kg 1,300 [1,300]
Trailer load (unbraked) in kg 680 [695]

Engine

Cylinders/valves 3/4
Capacity in ccm 1,499
Stroke/bore in mm 94.6/82.0
Engine power* in kW (hp) at 1/min 100-103 (136-140)/4,500-6,500
Engine torque (Nm) at 1/min 220/1,480-4,200
Compression ratio : 1 11.0

Performance

Top speed in km/h 211 [211]
Acceleration 0–100 km/h in s 8.5 [8.5]

Fuel consumption

Urban in l/100 km 7.9 [7.0]
Extra–urban in l/100 km 5.3 [5.3]
Combined in l/100 km 6.3 [5.9]
CO2 combined emissions in g/km 143 [135]
Tank capacity, approx. in l 42

Wheels

Tyre dimensions front 205/55 R16 91 W
Tyre dimensions rear 205/55 R16 91 W
Wheel dimensions and material front 7 J x 16 inches, light-alloy
Wheel dimensions and material rear 7 J x 16 inches, light-alloy

Weight

Unladen weight EU in kg 1,465
Max. permissible weight in kg 1,920
Permitted load in kg 530
Permitted axle load front/rear in kg 1,035/955
Luggage capacity min. (seats up or roof down) in l 380
Luggage capacity max. (seats down or roof up) in l 1,200
Trailer load 8% (braked) in kg 1,300
Trailer load 12% (braked) in kg 1,300
Trailer load (unbraked) in kg 730

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power* in kW (hp) at 1/min 131-141 (178-192)/5,000-6,000
Engine torque (Nm) at 1/min 280/1,350-4,600
Compression ratio : 1 11.0

Performance

Top speed in km/h 235
Acceleration 0–100 km/h in s 7.0

Fuel consumption

Urban in l/100 km 7.9
Extra–urban in l/100 km 5.5
Combined in l/100 km 6.4
CO2 combined emissions in g/km 147-146
Tank capacity, approx. in l 50

Wheels

Tyre dimensions front 225/45 R17 94 Y XL
Tyre dimensions rear 225/45 R17 94 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Weight

Unladen weight EU in kg 1,515
Max. permissible weight in kg 2,000
Permitted load in kg 560
Permitted axle load front/rear in kg 1,085/990
Luggage capacity min. (seats up or roof down) in l 380
Luggage capacity max. (seats down or roof up) in l 1,200
Trailer load 8% (braked) in kg -
Trailer load 12% (braked) in kg -
Trailer load (unbraked) in kg -

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power* in kW (hp) at 1/min 180 (245)/5,000-6,500
Engine torque (Nm) at 1/min 380/1,500-4,400
Compression ratio : 1 10.2

Performance

Top speed in km/h 243
Acceleration 0–100 km/h in s 6.3

Fuel consumption

Urban in l/100 km 8.4
Extra–urban in l/100 km 5.9
Combined in l/100 km 6.8
CO2 combined emissions in g/km 156
Tank capacity, approx. in l 50

Wheels

Tyre dimensions front 225/40 R18 92 Y XL
Tyre dimensions rear 225/40 R18 92 Y XL
Wheel dimensions and material front 8 J x 18 inches, light-alloy
Wheel dimensions and material rear 8 J x 18 inches, light-alloy

Weight

Unladen weight EU in kg 1,600
Max. permissible weight in kg 2.085
Permitted load in kg 560
Permitted axle load front/rear in kg 1,120/1,020
Luggage capacity min. (seats up or roof down) in l 380
Luggage capacity max. (seats down or roof up) in l 1,200
Trailer load 8% (braked) in kg -
Trailer load 12% (braked) in kg -
Trailer load (unbraked) in kg -

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power* in kW (hp) at 1/min 225 (306)/5,000-6,250
Engine torque (Nm) at 1/min 450/1,750-4,500
Compression ratio : 1 9.5

Performance

Top speed in km/h 250
Acceleration 0–100 km/h in s 4.8

Fuel consumption

Urban in l/100 km 9.1
Extra–urban in l/100 km 6.5
Combined in l/100 km 7.4
CO2 combined emissions in g/km 170
Tank capacity, approx. in l 50

Wheels

Tyre dimensions front 225/40 R18 92 Y XL
Tyre dimensions rear 225/40 R18 92 Y XL
Wheel dimensions and material front 8 J x 18 inches, light-alloy
Wheel dimensions and material rear 8 J x 18 inches, light-alloy

Weight

Unladen weight EU in kg 1,450 [1,460]
Max. permissible weight in kg 1,925 [1,940]
Permitted load in kg 550 [555]
Permitted axle load front/rear in kg 1,025/980 [1,040/980]
Luggage capacity min. (seats up or roof down) in l 380 [380]
Luggage capacity max. (seats down or roof up) in l 1,200 [1,200]
Trailer load 8% (braked) in kg 1,300 [1,300]
Trailer load 12% (braked) in kg 1,300 [1,300]
Trailer load (unbraked) in kg 725 [730]

Engine

Cylinders/valves 3/4
Capacity in ccm 1.496
Stroke/bore in mm 90.0/84.0
Engine power* in kW (hp) at 1/min 85 (116)/4,000
Engine torque (Nm) at 1/min 270/1,750-2,250
Compression ratio : 1 16.5

Performance

Top speed in km/h 198 [198]
Acceleration 0–100 km/h in s 10.3 [10.1]

Fuel consumption

Urban in l/100 km 5.2 [5.0]
Extra–urban in l/100 km 4,4 [4.3]
Combined in l/100 km 4.7 [4.5]
CO2 combined emissions in g/km 123 [119]
Tank capacity, approx. in l 42

Wheels

Tyre dimensions front 205/55 R16 91 W
Tyre dimensions rear 205/55 R16 91 W
Wheel dimensions and material front 7 J x 16 inches, light-alloy
Wheel dimensions and material rear 7 J x 16 inches, light-alloy

Weight

Unladen weight EU in kg 1,480 [1,505]
Max. permissible weight in kg 1,950 [1,980]
Permitted load in kg 545 [550]
Permitted axle load front/rear in kg 1,050/980 [1,080/980]
Luggage capacity min. (seats up or roof down) in l 380 [380]
Luggage capacity max. (seats down or roof up) in l 1,200 [1,200]
Trailer load 8% (braked) in kg 1,300 [1,300]
Trailer load 12% (braked) in kg 1,300 [1,300]
Trailer load (unbraked) in kg 740 [750]

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power* in kW (hp) at 1/min 100-110 (136-150)/4,000
Engine torque (Nm) at 1/min 350/1,750-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 215 [214]
Acceleration 0–100 km/h in s 8.5 [8.4]

Fuel consumption

Urban in l/100 km 5.6 [5.4]
Extra–urban in l/100 km 4.4 [4.4-4.3]
Combined in l/100 km 4.8 [4.8-4.7]
CO2 combined emissions in g/km 127 [126-123]
Tank capacity, approx. in l 42

Wheels

Tyre dimensions front 205/55 R16 91 W
Tyre dimensions rear 205/55 R16 91 W
Wheel dimensions and material front 7 J x 16 inches, light-alloy
Wheel dimensions and material rear 7 J x 16 inches, light-alloy

Weight

Unladen weight EU in kg 1.525
Max. permissible weight in kg 2,000
Permitted load in kg 550
Permitted axle load front/rear in kg 1,085/985
Luggage capacity min. (seats up or roof down) in l 380
Luggage capacity max. (seats down or roof up) in l 1,200
Trailer load 8% (braked) in kg 1,300
Trailer load 12% (braked) in kg 1,300
Trailer load (unbraked) in kg 750

Engine

Cylinders/valves 4/4
Capacity in ccm 1.995
Stroke/bore in mm 90.0/84.0
Engine power* in kW (hp) at 1/min 140 (190)/4,000
Engine torque (Nm) at 1/min 400/1,750-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 230
Acceleration 0–100 km/h in s 7.3

Fuel consumption

Urban in l/100 km 5.4
Extra–urban in l/100 km 4.5
Combined in l/100 km 4.8
CO2 combined emissions in g/km 127
Tank capacity, approx. in l 50

Wheels

Tyre dimensions front 225/45 R17 94 Y XL
Tyre dimensions rear 225/45 R17 94 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Weight

Unladen weight EU in kg 1,590
Max. permissible weight in kg 2.065
Permitted load in kg 550
Permitted axle load front/rear in kg 1,105/1,020
Luggage capacity min. (seats up or roof down) in l 380
Luggage capacity max. (seats down or roof up) in l 1,200
Trailer load 8% (braked) in kg 1,500
Trailer load 12% (braked) in kg 1,500
Trailer load (unbraked) in kg 750

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power* in kW (hp) at 1/min 140 (190)/4,000
Engine torque (Nm) at 1/min 400/1,750-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 229
Acceleration 0–100 km/h in s 7.0

Fuel consumption

Urban in l/100 km 5.6
Extra–urban in l/100 km 4.7
Combined in l/100 km 5.0
CO2 combined emissions in g/km 132
Tank capacity, approx. in l 50

Wheels

Tyre dimensions front 225/45 R17 94 Y XL
Tyre dimensions rear 225/45 R17 94 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

FUEL CONSUMPTION AND CO2 EMISSIONS.

BMW M135i xDrive:
Fuel consumption in l/100 km (combined): 7.5
CO2 emissions in g/km (combined): 171.0



BMW 128ti:
Fuel consumption in l/100 km (combined): 6.8
CO2 emissions in g/km (combined): 156.0



Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

Read more

Fuel consumption and CO2 emissions of the BMW 1 Series.

  • BMW M135i xDrive:
    Fuel consumption in l/100 km (combined): 7.4
    CO2 emissions in g/km (combined): 170

    BMW 128ti:
    Fuel consumption in l/100 km (combined): 6.8
    CO2 emissions in g/km (combined): 156

    Images show optional equipment, screens and displays depend on equipment options.

    The values of fuel consumptions, CO2 emissions and energy consumptions shown were determined according to the European Regulation (EC) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tyres available on the selected model.

    The CO2 efficiency specifications are determined according to Directive 1999/94/EC and the European Regulation in its current version applicable. The values shown are based on the fuel consumption, CO2 values and energy consumptions according to the NEDC cycle for the classification.

    For further information about the official fuel consumption and the specific CO2 emission of new passenger cars can be taken out of the „handbook of fuel consumption, the CO2 emission and power consumption of new passenger cars“, which is available at all selling points and at https://www.dat.de/angebote/verlagsprodukte/leitfaden-kraftstoffverbrauch.html.
