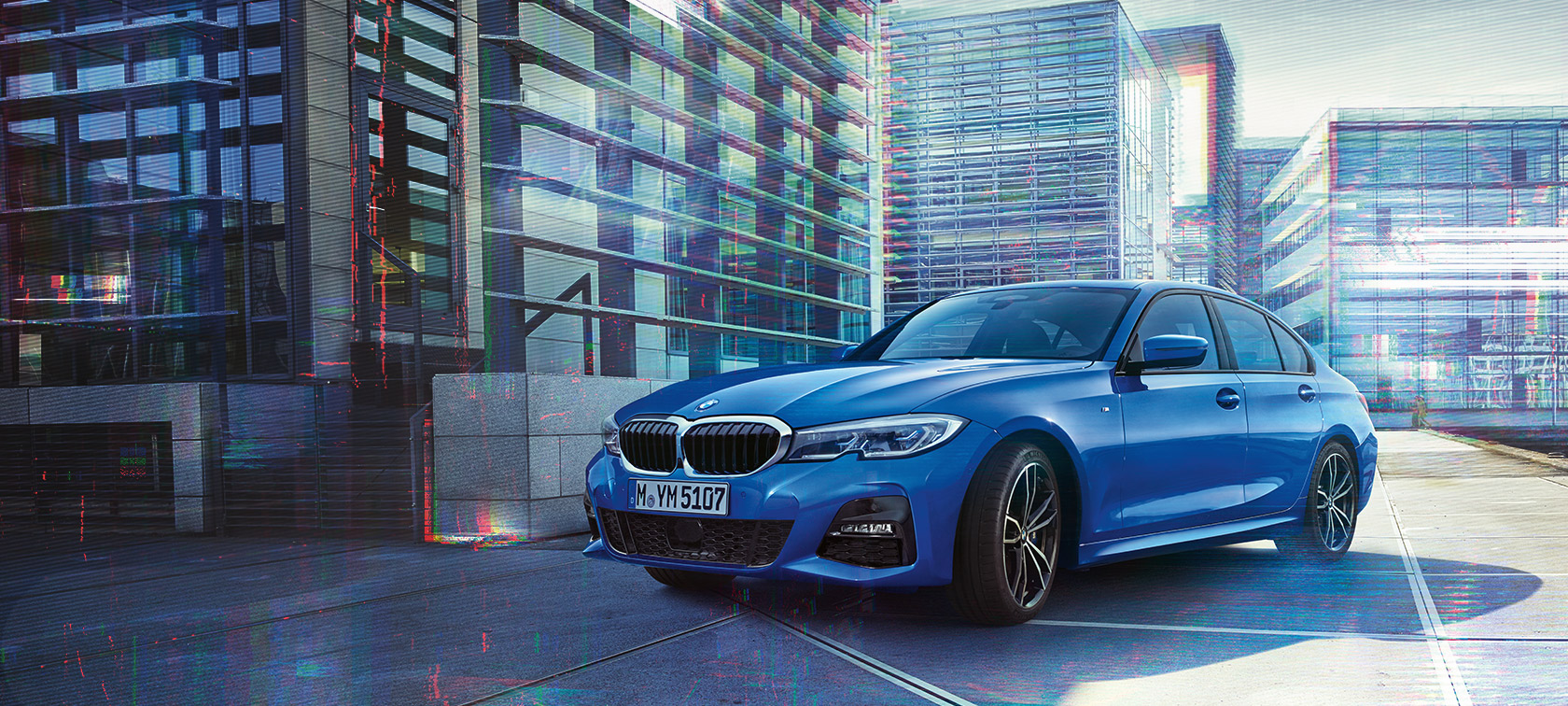

TECHNICAL DATA FOR THE BMW 3 SERIES SEDAN.
|
Powertrain type |
Petrol |
|---|---|
|
Power in kW (hp) |
135 (184) |
|
Torque in Nm |
300 |
|
Transmission |
8-speed, automatic |
|
Drivetrain |
Rear-wheel drive |
|
Cylinders |
4 |
|---|---|
|
Displacement in cm3 |
1,998 |
|
Nominal power in kW (hp)/1/min |
135 (184) / 5,000 - 6,500 |
|
Nominal torque in Nm/1/min |
300 / 1,350 - 4,000 |
|
Acceleration 0–100 km/h in s |
7.4 |
|---|---|
|
Top speed in km/h |
235 |
|
Fuel consumption, combined WLTP in l/100 km |
7.3–6.5 |
|---|---|
|
CO2 emissions, combined WLTP in g/km |
165–147 |
|
4,713 mm
|
|
|
1,827 mm
|
|
|
1,440 mm
|
|
|
Length in mm |
4,713 |
|
Width in mm |
1,827 |
|
Height in mm |
1,440 |
|
Width incl. mirrors (driver / passenger side) in mm |
2,068 (1,040 / 1,028) |
|
Wheelbase in mm |
2,851 |
|
Vehicle curb weight in kg |
1,590 |
|
Permissible gross weight in kg |
2,070 |
|
Payload in kg |
555 |
|
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg |
1,600 / 75 |
|
Luggage capacity in l |
480 |
|
Tank capacity in l |
59 |
|
Powertrain type |
Petrol |
|---|---|
|
Power in kW (hp) |
180 (245) |
|
Torque in Nm |
400 |
|
Transmission |
8-speed, automatic |
|
Drivetrain |
Rear-wheel drive |
|
Cylinders |
4 |
|---|---|
|
Displacement in cm3 |
1,998 |
|
Nominal power in kW (hp)/1/min |
180 (245) / 4,500–6,500 |
|
Nominal torque in Nm/1/min |
400 / 1,600–4,000 |
|
Acceleration 0–100 km/h in s |
5.9 |
|---|---|
|
Top speed in km/h |
250 |
|
Fuel consumption, combined WLTP in l/100 km |
6.7–6.6 |
|---|---|
|
CO2 emissions, combined WLTP in g/km |
152–148 |
|
4,713 mm
|
|
|
1,827 mm
|
|
|
1,440 mm
|
|
|
Length in mm |
4,713 |
|
Width in mm |
1,827 |
|
Height in mm |
1,440 |
|
Width incl. mirrors (driver / passenger side) in mm |
2,068 (1,040 / 1,028) |
|
Wheelbase in mm |
2,851 |
|
Vehicle curb weight in kg |
1,600 |
|
Permissible gross weight in kg |
2,080 |
|
Payload in kg |
555 |
|
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg |
1,600/75 |
|
Luggage capacity in l |
480 |
|
Tank capacity in l |
59 |
|
Powertrain type |
Petrol |
|---|---|
|
Power in kW (hp) |
375 (510) |
|
Torque in Nm |
650 |
|
Transmission |
8-speed, automatic |
|
Drivetrain |
All-wheel drive |
|
Cylinders |
6 |
|---|---|
|
Displacement in cm3 |
2,993 |
|
Nominal power in kW (hp)/1/min |
375 (510) / 6,250 |
|
Nominal torque in Nm/1/min |
650 / 2,750 - 5,500 |
|
Acceleration 0–100 km/h in s |
3.5 |
|---|---|
|
Top speed in km/h |
250 |
|
Fuel consumption, combined WLTP in l/100 km |
10.1 - 10 |
|---|---|
|
CO2 emissions, combined WLTP in g/km |
230 - 228 |
|
4,794 mm
|
|
|
1,903 mm
|
|
|
1,434 mm
|
|
|
Length in mm |
4,794 |
|
Width in mm |
1,903 |
|
Height in mm |
1,434 |
|
Width incl. mirrors (driver / passenger side) in mm |
2,068 (1,040 / 1,028) |
|
Wheelbase in mm |
2,857 |
|
Vehicle curb weight in kg |
1,855 |
|
Permissible gross weight in kg |
2,260 |
|
Payload in kg |
480 |
|
Luggage capacity in l |
480 |
|
Tank capacity in l |
59 |
|
Powertrain type |
Petrol |
|---|---|
|
Power in kW (hp) |
390 (530) |
|
Torque in Nm |
650 |
|
Transmission |
8-speed, automatic |
|
Drivetrain |
All-wheel drive |
|
Cylinders |
6 |
|---|---|
|
Displacement in cm3 |
2,993 |
|
Nominal power in kW (hp)/1/min |
390 (530) / 6,250 |
|
Nominal torque in Nm/1/min |
650 / 2,750 - 5,730 |
|
Acceleration 0–100 km/h in s |
3.5 |
|---|---|
|
Top speed in km/h |
250 |
|
Fuel consumption, combined WLTP in l/100 km |
10.2–10.1 |
|---|---|
|
CO2 emissions, combined WLTP in g/km |
230–227 |
|
Pass-by noise in dB(A) |
390 (530) / 6,250 |
|
Stationary noise level in dB(A) / 1/min |
650 / 2,750 - 5,730 |
|
4,801 mm
|
|
|
1,903 mm
|
|
|
1,438 mm
|
|
|
Length in mm |
4,801 |
|
Width in mm |
1,903 |
|
Height in mm |
1,438 |
|
Width incl. mirrors (driver / passenger side) in mm |
2,068 (1,040 / 1,028) |
|
Wheelbase in mm |
2,857 |
|
Vehicle curb weight in kg |
1,855 |
|
Permissible gross weight in kg |
2,260 |
|
Payload in kg |
480 |
|
Luggage capacity in l |
480 |
|
Tank capacity in l |
59 |
|
Powertrain type |
Petrol |
|---|---|
|
Power in kW (hp) |
115 (156) |
|
Torque in Nm |
250 |
|
Transmission |
8-speed, automatic |
|
Drivetrain |
Rear-wheel drive |
|
Cylinders |
4 |
|---|---|
|
Displacement in cm3 |
1,998 |
|
Nominal power in kW (hp)/1/min |
115 (156) / 4,500 - 6,500 |
|
Nominal torque in Nm/1/min |
250 / 1,300 - 4,300 |
|
Acceleration 0–100 km/h in s |
8.6 |
|---|---|
|
Top speed in km/h |
223 |
|
Fuel consumption, combined WLTP in l/100 km |
7.2–6.4 |
|---|---|
|
CO2 emissions, combined WLTP in g/km |
162–145 |
|
4,713 mm
|
|
|
1,827 mm
|
|
|
1,440 mm
|
|
|
Length in mm |
4,713 |
|
Width in mm |
1,827 |
|
Height in mm |
1,440 |
|
Width incl. mirrors (driver / passenger side) in mm |
2,068 (1,040 / 1,028) |
|
Wheelbase in mm |
2,851 |
|
Vehicle curb weight in kg |
1,575 |
|
Permissible gross weight in kg |
2,055 |
|
Payload in kg |
555 |
|
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg |
1,300 / 75 |
|
Luggage capacity in l |
480 |
|
Tank capacity in l |
59 |
|
Powertrain type |
Petrol |
|---|---|
|
Power in kW (hp) |
135 (184) |
|
Torque in Nm |
300 |
|
Transmission |
8-speed, automatic |
|
Drivetrain |
All-wheel drive |
|
Cylinders |
4 |
|---|---|
|
Displacement in cm3 |
1,998 |
|
Nominal power in kW (hp)/1/min |
135 (184) / 5,000 - 6,500 |
|
Nominal torque in Nm/1/min |
300 / 1,350 - 4,000 |
|
Acceleration 0–100 km/h in s |
7.7 |
|---|---|
|
Top speed in km/h |
230 |
|
Fuel consumption, combined WLTP in l/100 km |
7.6 - 6.8 |
|---|---|
|
CO2 emissions, combined WLTP in g/km |
171-153 |
|
4,713 mm
|
|
|
1,827 mm
|
|
|
1,445 mm
|
|
|
Length in mm |
4,713 |
|
Width in mm |
1,827 |
|
Height in mm |
1,445 |
|
Width incl. mirrors (driver / passenger side) in mm |
2,068 (1,040 / 1,028) |
|
Wheelbase in mm |
2,851 |
|
Vehicle curb weight in kg |
1,655 |
|
Permissible gross weight in kg |
2,135 |
|
Payload in kg |
555 |
|
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg |
1,800 / 75 |
|
Luggage capacity in l |
480 |
|
Tank capacity in l |
59 |
|
Powertrain type |
Petrol – 48 Volt Mild-Hybrid |
|---|---|
|
Power in kW (hp) |
275 (374) |
|
Torque in Nm |
500 |
|
Transmission |
8-speed, automatic |
|
Drivetrain |
All-wheel drive |
|
Cylinders |
6 |
|---|---|
|
Displacement in cm3 |
2,998 |
|
Nominal power in kW (hp)/1/min |
275 (374) / 5,500 - 6,500 |
|
Nominal torque in Nm/1/min |
500 / 1,900 - 5,000 |
|
(Nominal) power/30-minutes-power in kW (hp) |
8(11)/– |
|---|
|
Acceleration 0–100 km/h in s |
4.4 |
|---|---|
|
Top speed in km/h |
250 |
|
Fuel consumption, combined WLTP in l/100 km |
8.5 - 7.8 |
|---|---|
|
CO2 emissions, combined WLTP in g/km |
192 - 177 |
|
4,714 mm
|
|
|
1,827 mm
|
|
|
1,440 mm
|
|
|
Length in mm |
4,714 |
|
Width in mm |
1,827 |
|
Height in mm |
1,440 |
|
Width incl. mirrors (driver / passenger side) in mm |
2,068 (1,040 / 1,028) |
|
Wheelbase in mm |
2,851 |
|
Vehicle curb weight in kg |
1,800 |
|
Permissible gross weight in kg |
2,260 |
|
Payload in kg |
535 |
|
Luggage capacity in l |
480 |
|
Tank capacity in l |
59 |
|
Powertrain type |
Petrol – Plug-in-Hybrid |
|---|---|
|
Power in kW (hp) |
215 (292) |
|
Torque in Nm |
420 |
|
Transmission |
8-speed, automatic |
|
Drivetrain |
Rear-wheel drive |
|
Cylinders |
4 |
|---|---|
|
Displacement in cm3 |
1,998 |
|
Nominal power in kW (hp)/1/min |
135 (184) / 5,000 - 6,500 |
|
Nominal torque in Nm/1/min |
300 / 1,350 - 4,000 |
|
(Nominal) power/30-minutes-power in kW (hp) |
80 (109) |
|---|---|
|
(Nominal) torque in Nm |
265 |
|
Acceleration 0–100 km/h in s |
5.9 |
|---|---|
|
Top speed in km/h |
230 |
|
Electric top speed in km/h |
140 |
|
Fuel consumption, combined WLTP in l/100 km |
1.9–1.4 |
|---|---|
|
CO2 emissions, combined WLTP in g/km |
42–32 |
|
Energy consumption, combined WLTP in kWh/100 km |
20.1–18.1 |
|
Electric range, WLTP in km |
49–57 |
|
Battery capacity in kWh |
19.5 |
|---|---|
|
Maximum charging power AC in kW |
11 |
|
Charging time AC 0–100% in h |
4 |
|
4,713 mm
|
|
|
1,827 mm
|
|
|
1,446 mm
|
|
|
Length in mm |
4,713 |
|
Width in mm |
1,827 |
|
Height in mm |
1,446 |
|
Width incl. mirrors (driver / passenger side) in mm |
2,068 (1,040 / 1,028) |
|
Wheelbase in mm |
2,851 |
|
Vehicle curb weight in kg |
1,910 |
|
Permissible gross weight in kg |
2,360 |
|
Payload in kg |
525 |
|
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg |
1,500 / 75 |
|
Luggage capacity in l |
375 |
|
Tank capacity in l |
40 |
|
Powertrain type |
Petrol |
|---|---|
|
Power in kW (hp) |
180 (245) |
|
Torque in Nm |
400 |
|
Transmission |
8-speed, automatic |
|
Drivetrain |
All-wheel drive |
|
Cylinders |
4 |
|---|---|
|
Displacement in cm3 |
1,998 |
|
Nominal power in kW (hp)/1/min |
180 (245) / 4,500 - 6,500 |
|
Nominal torque in Nm/1/min |
400 / 1,600 - 4,000 |
|
Acceleration 0–100 km/h in s |
5.7 |
|---|---|
|
Top speed in km/h |
250 |
|
Fuel consumption, combined WLTP in l/100 km |
7.8–7 |
|---|---|
|
CO2 emissions, combined WLTP in g/km |
175–158 |
|
4,713 mm
|
|
|
1,827 mm
|
|
|
1,445 mm
|
|
|
Length in mm |
4,713 |
|
Width in mm |
1,827 |
|
Height in mm |
1,445 |
|
Width incl. mirrors (driver / passenger side) in mm |
2,068 (1,040 / 1,028) |
|
Wheelbase in mm |
2,851 |
|
Vehicle curb weight in kg |
1,670 |
|
Permissible gross weight in kg |
2,150 |
|
Payload in kg |
555 |
|
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg |
1,800 / 75 |
|
Luggage capacity in l |
480 |
|
Tank capacity in l |
59 |
|
Powertrain type |
Petrol – Plug-in-Hybrid |
|---|---|
|
Power in kW (hp) |
215 (292) |
|
Torque in Nm |
420 |
|
Transmission |
8-speed, automatic |
|
Drivetrain |
All-wheel drive |
|
Cylinders |
4 |
|---|---|
|
Displacement in cm3 |
1,998 |
|
Nominal power in kW (hp)/1/min |
135 (184) / 5,000 - 6,500 |
|
Nominal torque in Nm/1/min |
300 / 1,350 - 4,000 |
|
(Nominal) power/30-minutes-power in kW (hp) |
80 (109) |
|---|---|
|
(Nominal) torque in Nm |
265 |
|
Acceleration 0–100 km/h in s |
5.9 |
|---|---|
|
Top speed in km/h |
230 |
|
Electric top speed in km/h |
140 |
|
Fuel consumption, combined WLTP in l/100 km |
2.1–1.6 |
|---|---|
|
CO2 emissions, combined WLTP in g/km |
47–35 |
|
Energy consumption, combined WLTP in kWh/100 km |
21–18.9 |
|
Electric range, WLTP in km |
47–55 |
|
Battery capacity in kWh |
19.5 |
|---|---|
|
Maximum charging power AC in kW |
11 |
|
Charging time AC 0–100% in h |
4 |
|
4,713 mm
|
|
|
1,827 mm
|
|
|
1,446 mm
|
|
|
Length in mm |
4,713 |
|
Width in mm |
1,827 |
|
Height in mm |
1,446 |
|
Width incl. mirrors (driver / passenger side) in mm |
2,068 (1,040 / 1,028) |
|
Wheelbase in mm |
2,851 |
|
Vehicle curb weight in kg |
1,960 |
|
Permissible gross weight in kg |
2,410 |
|
Payload in kg |
525 |
|
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg |
1,500 / 75 |
|
Luggage capacity in l |
375 |
|
Tank capacity in l |
40 |
|
Powertrain type |
Petrol |
|---|---|
|
Power in kW (hp) |
375 (510) |
|
Torque in Nm |
650 |
|
Transmission |
8-speed, automatic |
|
Drivetrain |
Rear-wheel drive |
|
Cylinders |
6 |
|---|---|
|
Displacement in cm3 |
2,993 |
|
Acceleration 0–100 km/h in s |
3.9 |
|---|---|
|
Top speed in km/h |
250 |
|
Fuel consumption, combined WLTP in l/100 km |
9.9–9.7 |
|---|---|
|
CO2 emissions, combined WLTP in g/km |
224–220 |
|
Pass-by noise in dB(A) |
72 |
|
Stationary noise level in dB(A) / 1/min |
89 / 3,750 |
|
4,801 mm
|
|
|
1,903 mm
|
|
|
1,437 mm
|
|
|
Length in mm |
4,801 |
|
Width in mm |
1,903 |
|
Height in mm |
1,437 |
|
Width incl. mirrors (driver / passenger side) in mm |
2,068 (1,040 / 1,028) |
|
Wheelbase in mm |
2,857 |
|
Vehicle curb weight in kg |
1,805 |
|
Permissible gross weight in kg |
2,210 |
|
Payload in kg |
480 |
|
Luggage capacity in l |
480 |
|
Tank capacity in l |
59 |
|
Powertrain type |
Petrol |
|---|---|
|
Power in kW (hp) |
353 (480) |
|
Torque in Nm |
550 |
|
Transmission |
6-speed, automatic |
|
Drivetrain |
Rear-wheel drive |
|
Cylinders |
6 |
|---|---|
|
Displacement in cm3 |
2,993 |
|
Acceleration 0–100 km/h in s |
4.2 |
|---|---|
|
Top speed in km/h |
250 |
|
Fuel consumption, combined WLTP in l/100 km |
10.1–10 |
|---|---|
|
CO2 emissions, combined WLTP in g/km |
230–227 |
|
Pass-by noise in dB(A) |
71 |
|
Stationary noise level in dB(A) / 1/min |
89 / 3,750 |
|
4,801 mm
|
|
|
1,903 mm
|
|
|
1,437 mm
|
|
|
Length in mm |
4,801 |
|
Width in mm |
1,903 |
|
Height in mm |
1,437 |
|
Width incl. mirrors (driver / passenger side) in mm |
2,068 (1,040 / 1,028) |
|
Wheelbase in mm |
2,857 |
|
Vehicle curb weight in kg |
1,780 |
|
Permissible gross weight in kg |
2,210 |
|
Payload in kg |
505 |
|
Luggage capacity in l |
480 |
|
Tank capacity in l |
59 |
Fuel consumption and CO2 emissions.
BMW 330i Sedan[1]: Fuel consumption, combined WLTP in l/100 km: 6.7–6.6; CO2 emissions, combined WLTP in g/km: 152–148
